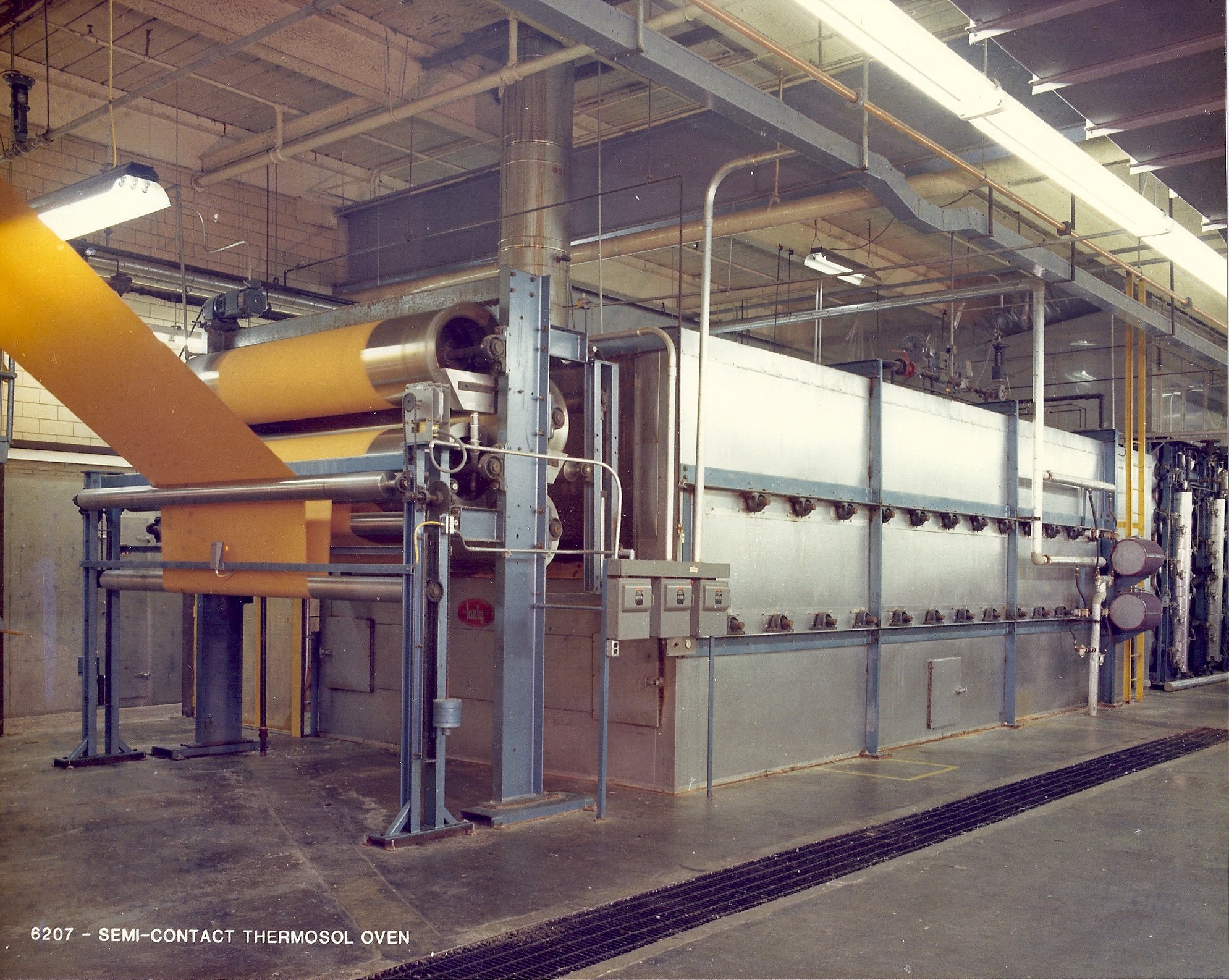

Continuous Textile Dryers

Continuous Textile Conveyor Ovens

Lanly engineers various industrial continuous conveyor ovens for the textile industry, including:
•
High-capacity steam-heated loop dryers
•
Screen Print dryers
•
High-temperature caramelizing ovens
•
High-temperature heat cleaning ovens
•
High-speed singeing systems
•
High-speed slasher dryers

Loop Dryers

Our loop dryers are designed for applications where delicate textile webs require minimum tension during drying. They are exceptionally suited for heavy-pile products, such as carpets, terry cloth, and upholstery fabrics, which need comparably long drying times.

Common design features for loop dryers include:

•
Proven performance exceeding 4,000 lbs of terry per hour
•
Aluminized steel interior and exterior surfaces for corrosion resistance
•
Balanced air distribution duct system for air and temperature uniformity
•
High-volume air circulation for superior side-to-side temperature uniformity and maximum production output
•
Uniform vertical airflow for undisturbed loop and cloth position throughout the drying process
•
Rotating girt mechanism minimizes cloth marking and extends service life of the system
•
Proprietary interlocking, insulated panels for superior thermal efficiency
•
Steam coils provide a source of heat
•
Exit end product folder
•
Four-sided aluminized steel ductwork with radius inlet ports ensure even air distribution across width of dryer
•
Adjustable balancing dampers ensure airflow uniformity
•
Ribbed flooring serves as return air plenum
•
Interior walkway for easy maintenance
•
Double lint screens arranged for easy removal and access to heat exchangers for cleaning
•
Full-opening, gasketed access doors for complete access to oven for walk-in inspection and cleaning
•
Internal lighting and large inspection windows at dryer ends and on doors for confident routine inspection

Slasher Dryers

Lanly’s slasher dryers are the preferred choice for applications where delicate filaments require minimum tension during the drying process. Precise programmable process control allows a single system to handle a wide range of products efficiently. Even heavy, high-denier-count yarns can be processed efficiently without additional steam cans.

Common design features for slasher dryers include:

•
Proven performance exceeding 240 yards per minute (ypm) on typical polyester yarns
•
Aluminized steel interior and exterior surfaces for corrosion resistance
•
High-volume / low-velocity design significantly reduces yarn twisting and stretching while increasing abrasion resistance
•
Non-contact drying system improves size uniformity, increasing weaving efficiency and decreasing stops
•
Pressurized plenum system supplies heated air from above and below sheds. The uniform airflow ensures consistent drying and high-speed processing of yarns
•
Optional closed-loop humidity control for increased uniformity and energy efficiency throughout summer and winter
•
Lanly insulated, interlocking panel construction for thermal efficiency and energy conservation
•
Aluminized steel interior and exterior surfaces for corrosion resistance
•
Four-sided aluminized steel ductwork with radius inlet ports ensure even air distribution across width of dryer
•
Dryer and sizing machine control systems communicate bi-directionally to control dryer parameters for various styles and operating conditions automatically
•
Full-opening, gasketed access doors for walk-in access and easy cleaning
•
Quick Cool system prevents yarn damage

Singeing Systems

Lanly’s high-speed singeing systems are designed for the high-speed production of delicate glass fabrics. Precise process control allows a single system to handle a wide range of products efficiently. Singeing systems are explicitly developed for singeing electrical fiberglass and can accommodate a wide variety of yarn diameters.

Common design features for singers include:

•
High burner capacity for production speeds up to 120 ypm
•
Large-diameter 12” rolls with extended width burner faces for increased dwell time, more effective singeing, and reduced risk of creasing
•
Four burners provide double singeing for heavy fabrics and two-burner operation for lightweight fabrics
•
Adjustable burners allow optimum positioning of flame contact angle and distance from fabric for efficient multi-style operation
•
Adjustable selvage protection on each end of the burners limit flame to fabric width
•
Automatic burner and line speed control ensures correct flame intensity for uniform singeing
•
Heat deflector shields protect fabric from heat migration when lower burners are operating
•
Large-diameter fabric backup rolls allow extended tangential flame dwell time on fabric surface to melt back broken filaments while protecting the fabric from wrinkles caused by flame shock
•
All rolls, including idler rolls, are water-cooled, protecting fabric strength
•
Dryer and sizing machine control systems communicate bi-directionally to control dryer parameters for various styles and operating conditions automatically
•
Variable speed drive on fabric backup rolls is interfaced with adjacent equipment drives for accurate line speed control
•
Direct spark ignition and infrared flame detection for reliable and safe operation
Lanly assembles, wires, paints, and tests your singeing system before shipping for quick and easy installation. In addition, Lanly provides field service, start-up supervision, on-site construction project management, and safety audits to ensure that your heat processing equipment is installed correctly and performs as intended for years to come.
